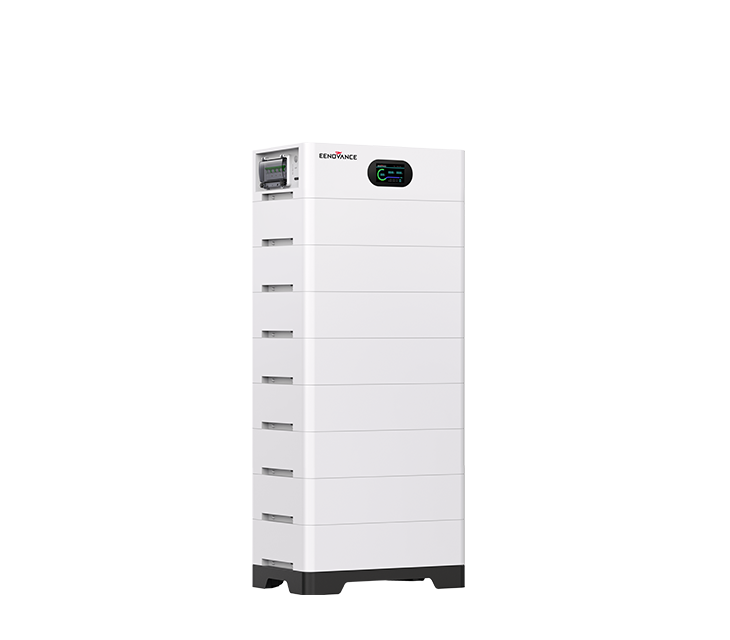

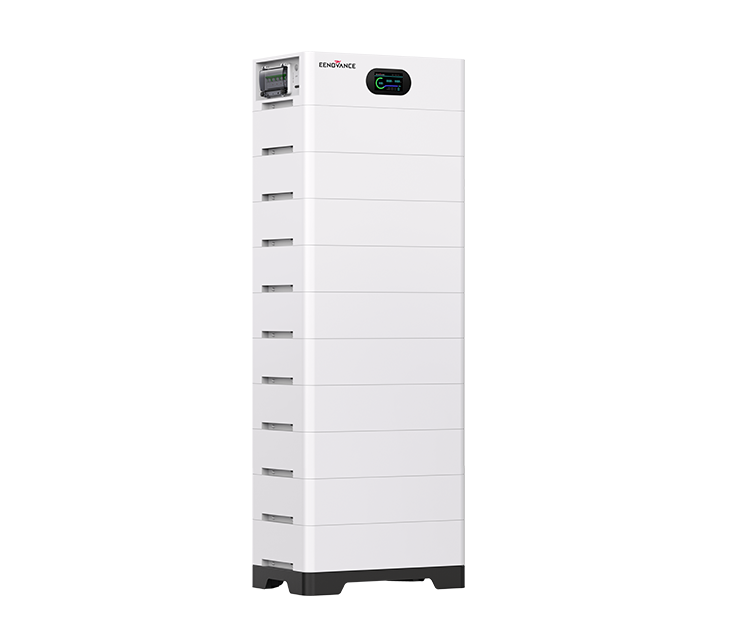

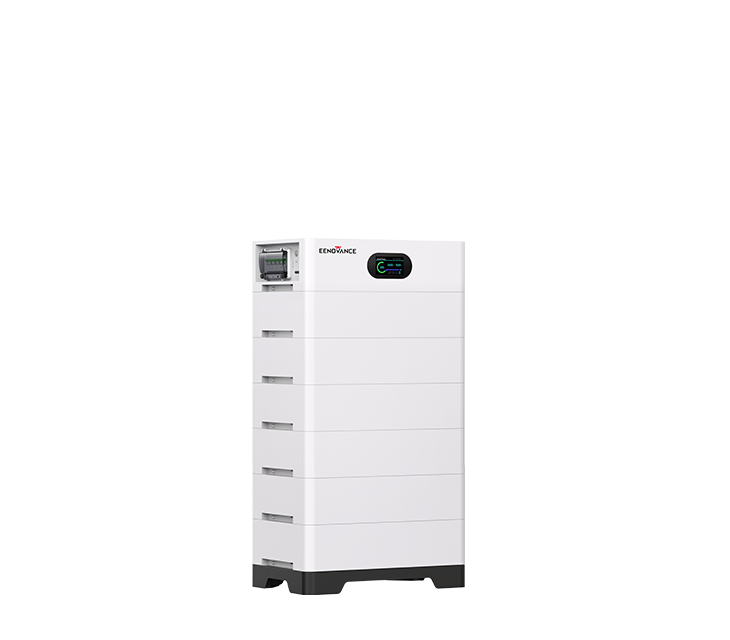

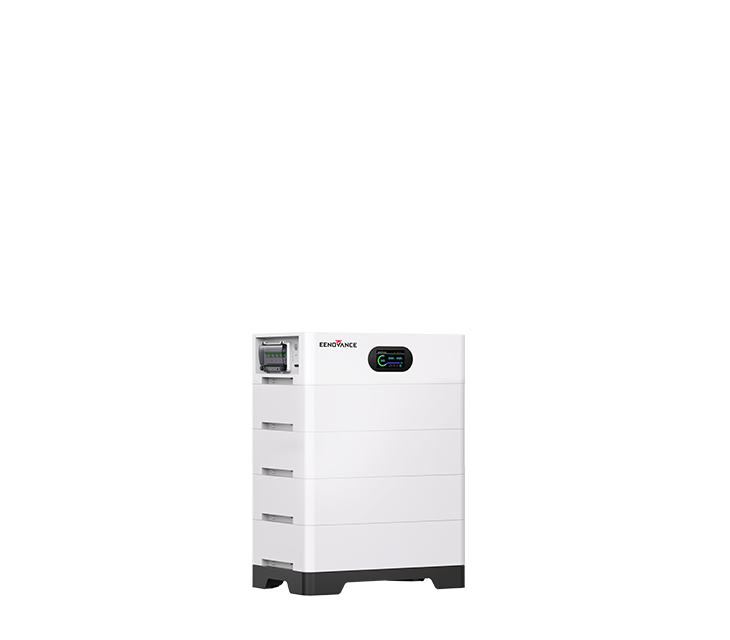

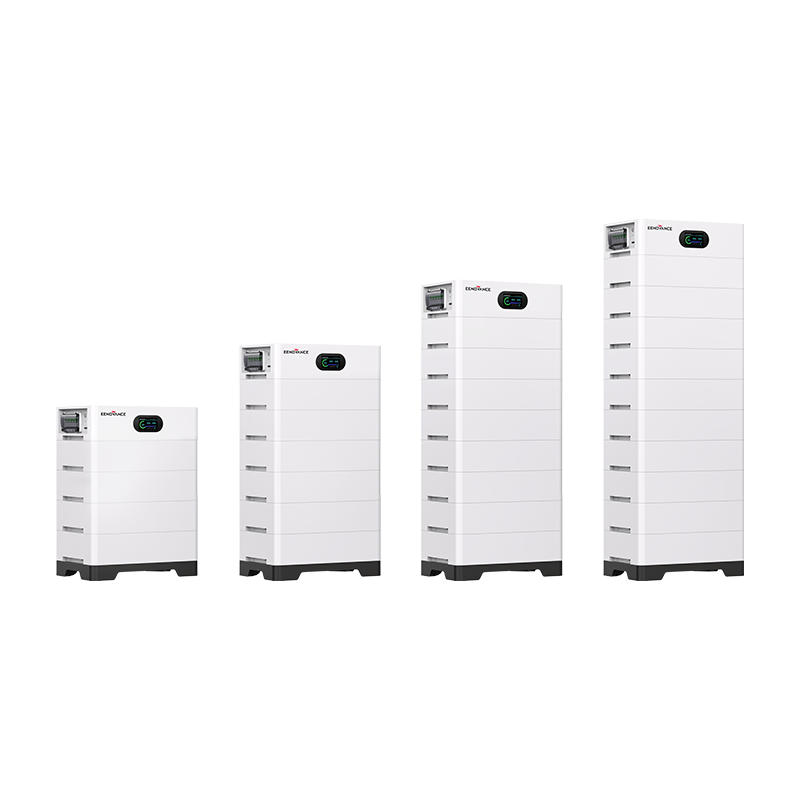

CHAKRA 2.5-HX Pro
5.12-25.6kWh | High Voltage
The CHAKRA 2.5-HX Pro is a high-performance home battery system offering safety, efficiency, and scalability. Featuring durable LFP cells and IP65 protection, it provides reliable, long-term performance. Its plug-and-play design and auto-commissioning make installation easy, while the 2.5kWh modular units support up to 4 clusters. Smart app monitoring ensures effortless energy management.
Certification:
UN38.3/IEC62619/IEC62040-1/IEC61000-6-2/IEC1000-6-4/IEC62477-1, etc.
Features
LiFePO4 battery cell offers up to 6000 cycles for longer-lasting performance.
Max. 10 modules per stack, connecting up to 15 stacks in parallel for versatile energy solutions.
Operating temperature range of -20 to 50°C (-4 to 122°F), ensures dependable performance in both heat and cold.
.svg)
Simple installation of plug-and-play — no external wiring required.
Control your home energy effortlessly via App or Web, keeping you connected anytime, anywhere.
Products Parameter
- Cell technology: LFP (LiFePO4)
- Battery module: 2.56 kWh, 51.2 V
- Battery usable energy: 5.12 ~ 25.6 kWh
- Nominal voltage: 102.4 - 512.0 V
- Max. charge and discharge current: 50 A
- Display: SOC status indicator, LCD indicator
- Ingress protection: IP65
- Cycle life: 6000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
- Scalability: Max. 10 modules per stack, 15 stacks in parallel
- Compliance: UN38.3 / IEC62619 / IEC62040-1 / IEC61000-6-2 / IEC1000-6-4 / IEC62477-1
