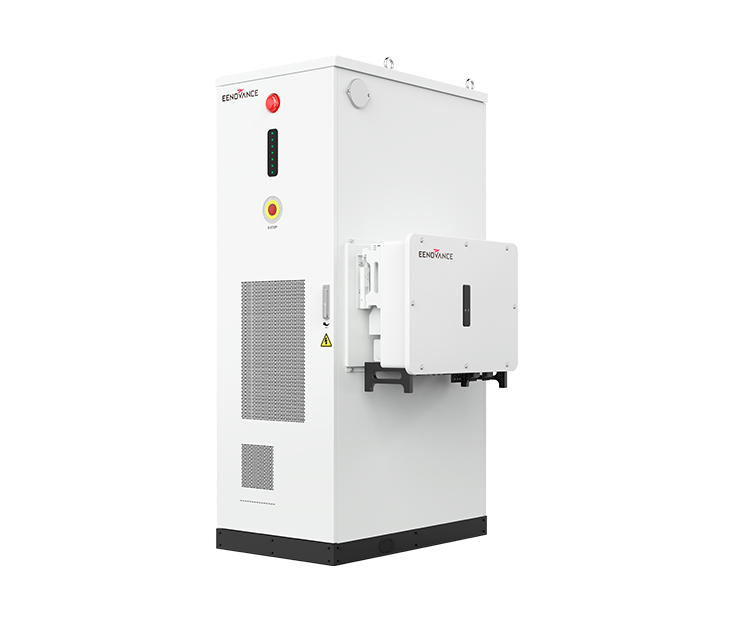

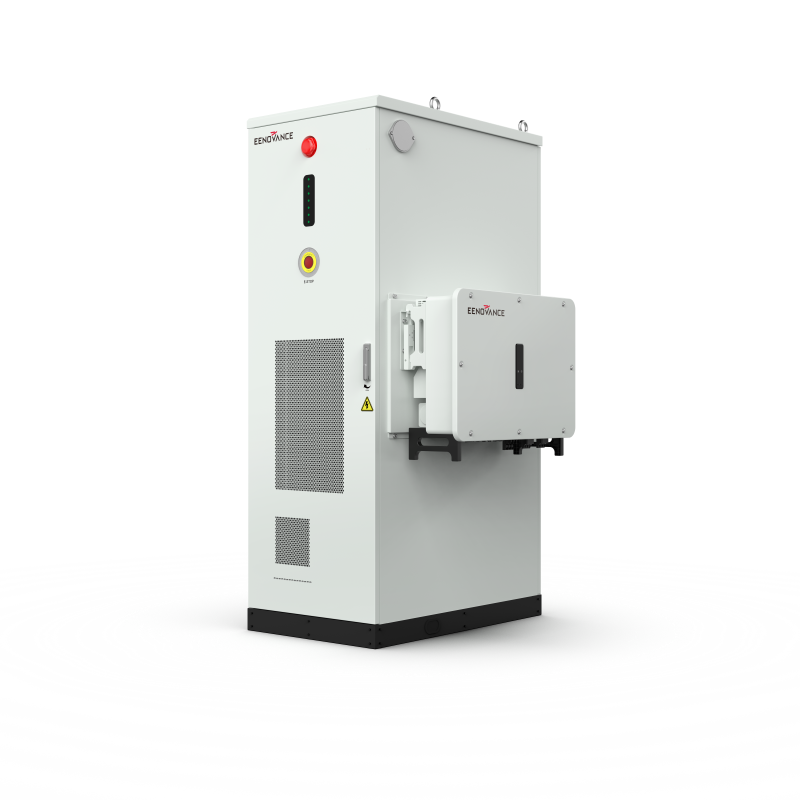

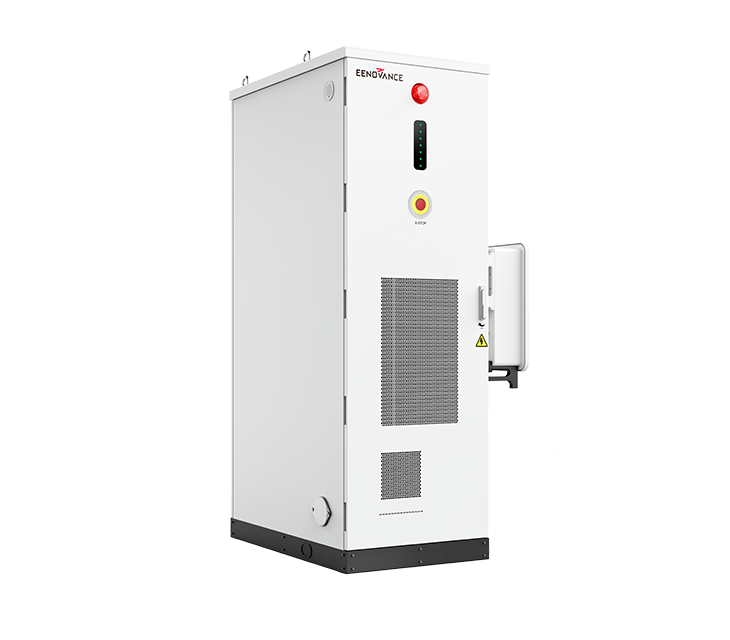

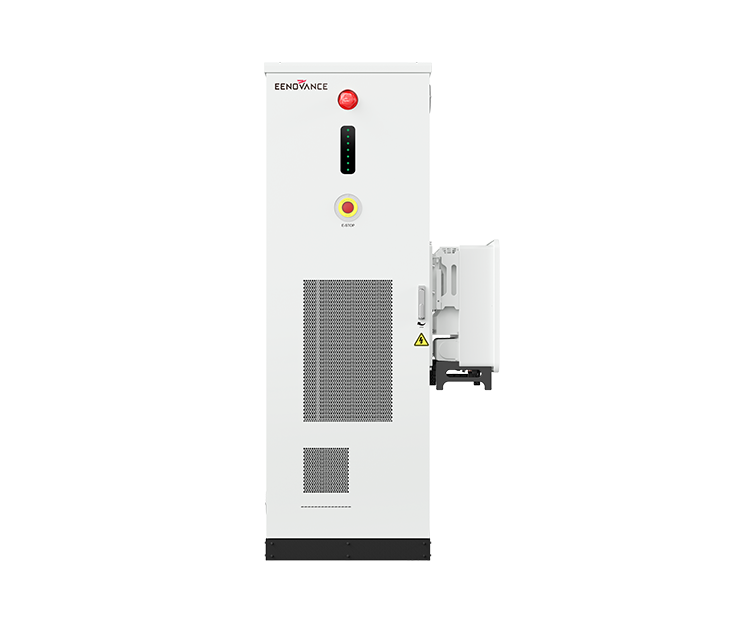

E-MATE 128-A

Air Cooling | 80.3 - 128.6 kWh

E-MATE 128-A is an all-in-one commercial energy storage system designed for commercial and industrial applications. Combining a 128 kWh battery with a 30–50 kW hybrid inverter, it enables seamless integration of PV, grid, storage, and diesel power. Its plug-and-play design, IP55 protection, wide operating temperature, 8,000-cycle LFP batteries, and intelligent remote O&M ensure reliable performance, lower installation costs, and efficient energy management.

Certification：UN38.3 / UN3480 / IEC62619 / IEC6100-6-2 / IEC62477-1 / CQC etc.

Features

Plug-and-Play, Faster Deployment

Factory pre-integrated and pre-commissioned, no complex on-site installation required. Deploy faster, reduce labor costs, and start generating value immediately.

Advanced Safety, Inside and Out

From LFP cell-level intrinsic safety to multi-layer protection (smoke detection, aerosol fire suppression, water fire interface), the system builds a complete safety loop with real-time monitoring and alarm linkage.

Built for Harsh Environments

IP55 protection and stable operation from -20°C to +50°C ensure reliable performance in rain, dust, heat, and cold—ideal for outdoor and remote applications.

High-Capacity, Flexible Design

128 kWh capacity with modular battery packs based on 314 Ah cells, supporting flexible configuration and future expansion while simplifying system structure.

Long-Term Reliability & ROI

Up to 8,000 cycles with intelligent energy management, helping maximize system lifespan and deliver stronger long-term returns.

Efficient Thermal Management

Smart forced air-cooling ensures uniform heat dissipation across all battery modules, with precise temperature control to improve consistency, safety, and lifespan.

Smart Remote O&M

Real-time monitoring, remote diagnostics, and intelligent dispatch reduce maintenance costs and improve operational efficiency.

Low Noise, High Performance

Operating noise ≤75dB, making it suitable for urban and noise-sensitive environments without compromising performance.

Products Parameter

E-MATE 128-A

Cell technology LFP ( LiFePO4)
Battery usable energy 80.3 ~ 128.6 kWh
System Max. charge and discharge current 157A
Charge / discharge rate 0.5P
IP Protection IP55
Anti Corrosion Level C4-M
Warranty period 5 years / 10years (Optional)
Cycle life 8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
Fire Protection System Gas fire fighting (aerosol): cabinet level, water fire fighting, smoke sensing, temperature sensing, pressure relief valve
Compliance UN38.3/IEC62619/63056/60730/IEC6100-6-2/IEC62477-1
Dimension (W×D×H) 780*1257*2373mm （30.71 × 49.49 × 93.43 inch）
