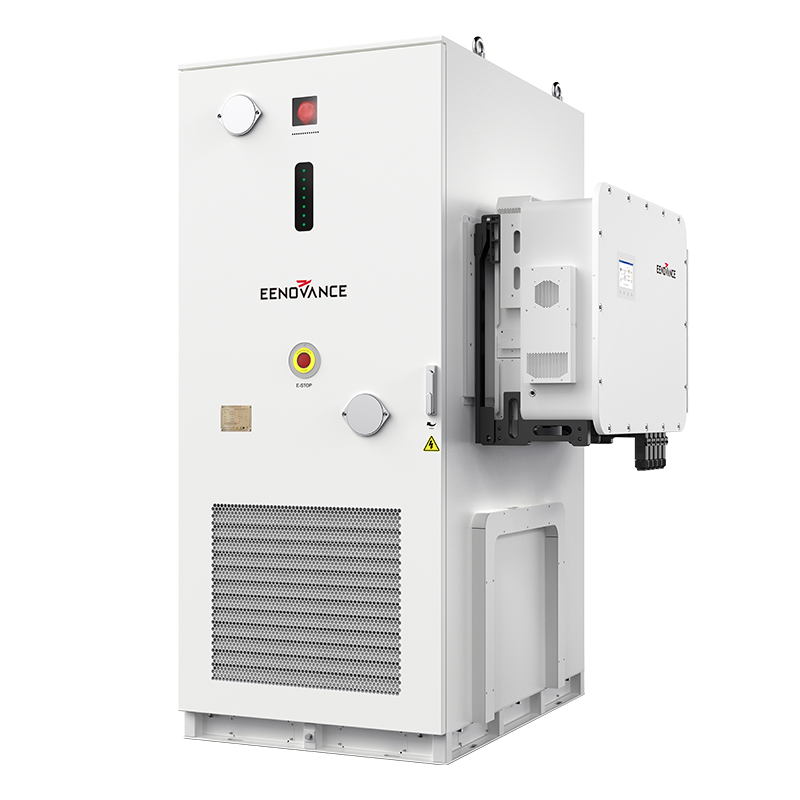

E-MATE 261-L
261kWh / Liquid Cooling ESS
The E-MATE 261-L is a fully integrated outdoor energy storage system for commercial and industrial applications. Combining high-performance LFP batteries, intelligent liquid cooling, multi-layer safety protection and cloud-based energy management within a factory-integrated architecture, it enables simplified deployment, reliable operation and long-term lifecycle value.
Certification:
UN38.3 & MSDS/IEC62619/63056/60730/IEC61000-2/-4
Features
A factory-integrated system with pre-commissioning and comprehensive factory testing, reducing onsite engineering, shortening deployment time and ensuring consistent system quality.
Intelligent liquid cooling maintains cell temperature differences within ≤2.5°C, improving thermal consistency, battery efficiency and long-term service life.
High-performance LFP batteries deliver over 8,000 cycles, maximizing lifetime energy throughput while reducing total cost of ownership.
Integrated battery management, early-warning detection, aerosol fire suppression and pressure relief work together to provide reliable protection throughout system operation.
Cloud-based monitoring, remote diagnostics and intelligent O&M deliver real-time system visibility and improve operational efficiency throughout the asset lifecycle.
Products Parameter
.png)
- Cell technology: LiFePO4
- Battery system rated capacity: 261kWh
- MPPT voltage range: 150 V - 950 Vac
- Maximum input current: 10*42 Aac
- Battery voltage range: 300 - 950 V
- Maximum charging/discharging current: 200 A / 100 A + 100 A
- Number of battery ports: 2
- Size (width x height x depth): 1174 x 814 x 400 mm
- Weight: 170 kg
- Working environment temperature/humidity: -25 ~ +60°C / 0 ~ 100 %
- Ingress protection IP66
- Compliance: UN38.3 & MSDS/IEC62619/63056/60730/IEC61000-2/-4
