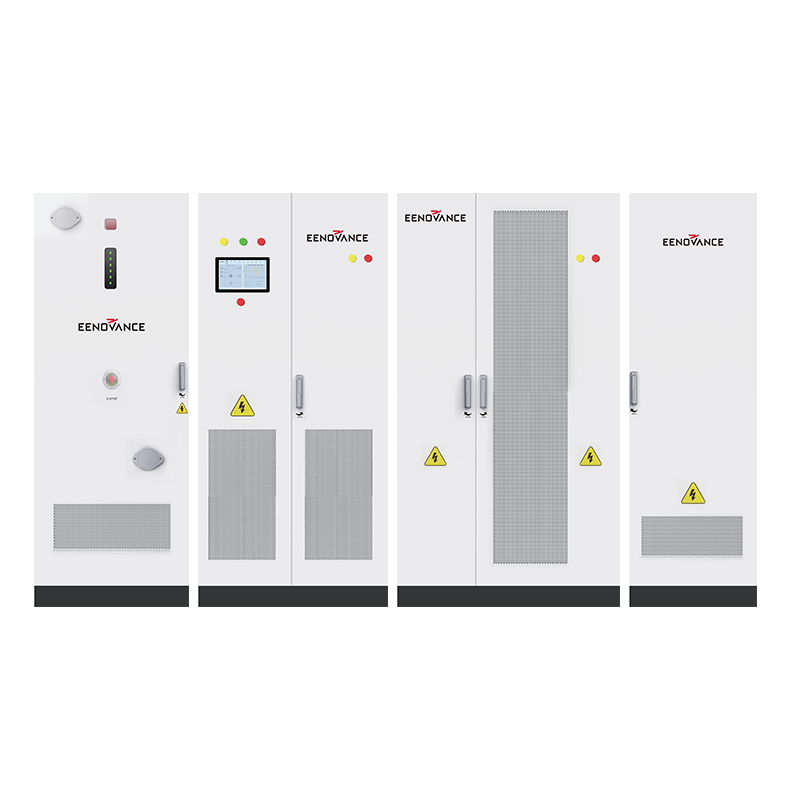

FlexCore Series
125 kW~1 MW / 261 kWh~2.088 Mwh
FlexCore Series is a modular liquid-cooled commercial & industrial energy storage system offering flexible configurations from 125 kW to 1 MW and 261 kWh to 2088 kWh. Designed for diverse energy applications, it features intelligent EMS, remote monitoring, and cluster-level battery management for efficient operation. Multi-level protection, including gas, water, and ventilation monitoring, enhances system safety and reliability. With its scalable architecture and integrated design, FlexCore helps businesses optimize energy costs, improve power resilience, and support renewable energy integration across industrial and commercial facilities.
Compliance:

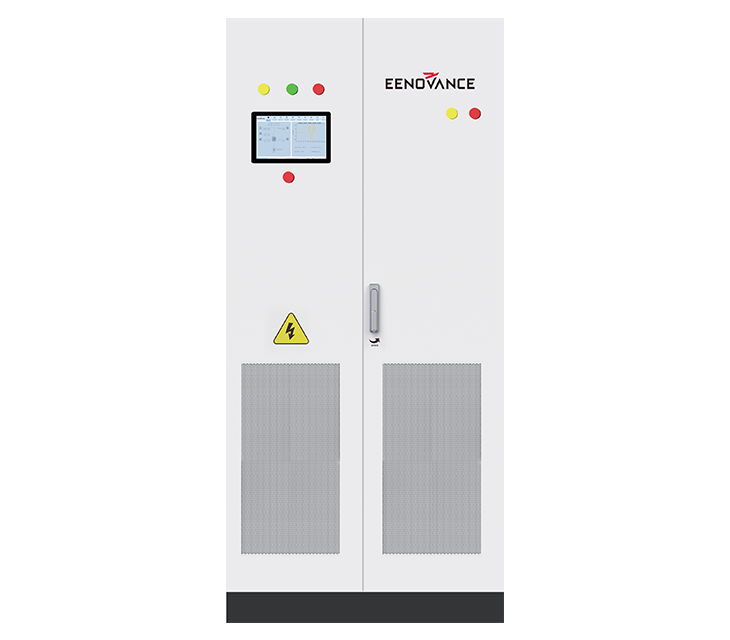

Electrical cabinet: IEC 62477/IEC62109/IEC 61439

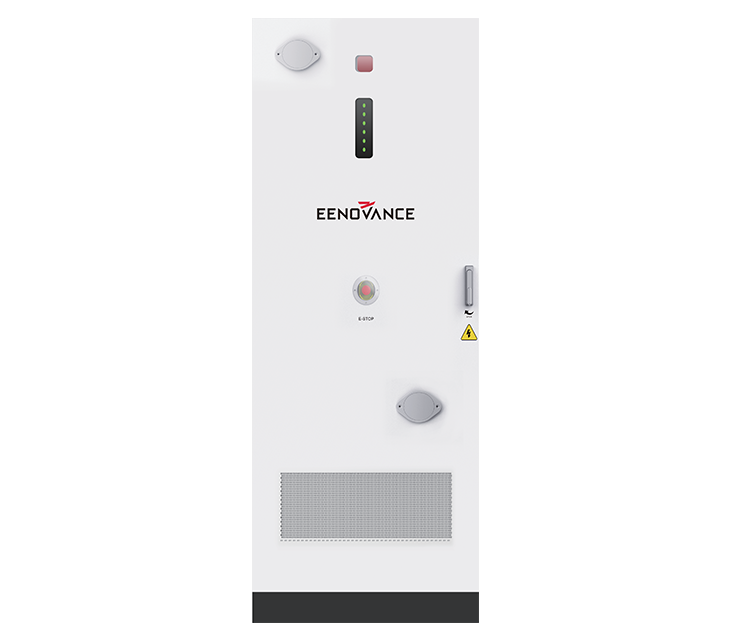

Battery cabinet:UN38.3 / IEC62619 / IEC63056/IEC60730/IEC61000/IEC62477
Features
.svg)
Modular cabinet combinations support power ratings from 125 kW to 1 MW and capacities from 261 kWh to 2088 kWh for diverse C&I applications.
Multi-level protection with gas, water, and ventilation monitoring enhances system safety and operational reliability.
Integrated EMS with remote monitoring and fault diagnosis enables real-time control and efficient system management.
.svg)
Cluster-Level Battery Control
Products Parameter
- Cell technology: LiFePO₄
- Battery system rated capacity: 261 kWh – 2088 kWh
- MPPT Voltage Range 150 – 950 Vdc
- Maximum PV Input Current 45 A
- Battery Voltage Range 728 – 936 V
- Maximum Charging/Discharging Rate 0.5 P
- Cooling Method Battery: Intelligent Liquid Cooling Electrical Cabinet: Intelligent Air Cooling
- Operating Temperature -25°C to +45°C
- Working Environment Humidity 0–95% RH (Non-condensing)
- Ingress Protection IP54
- Compliance UN38.3, IEC62619, IEC63056, IEC62477, IEC62109, IEC61000

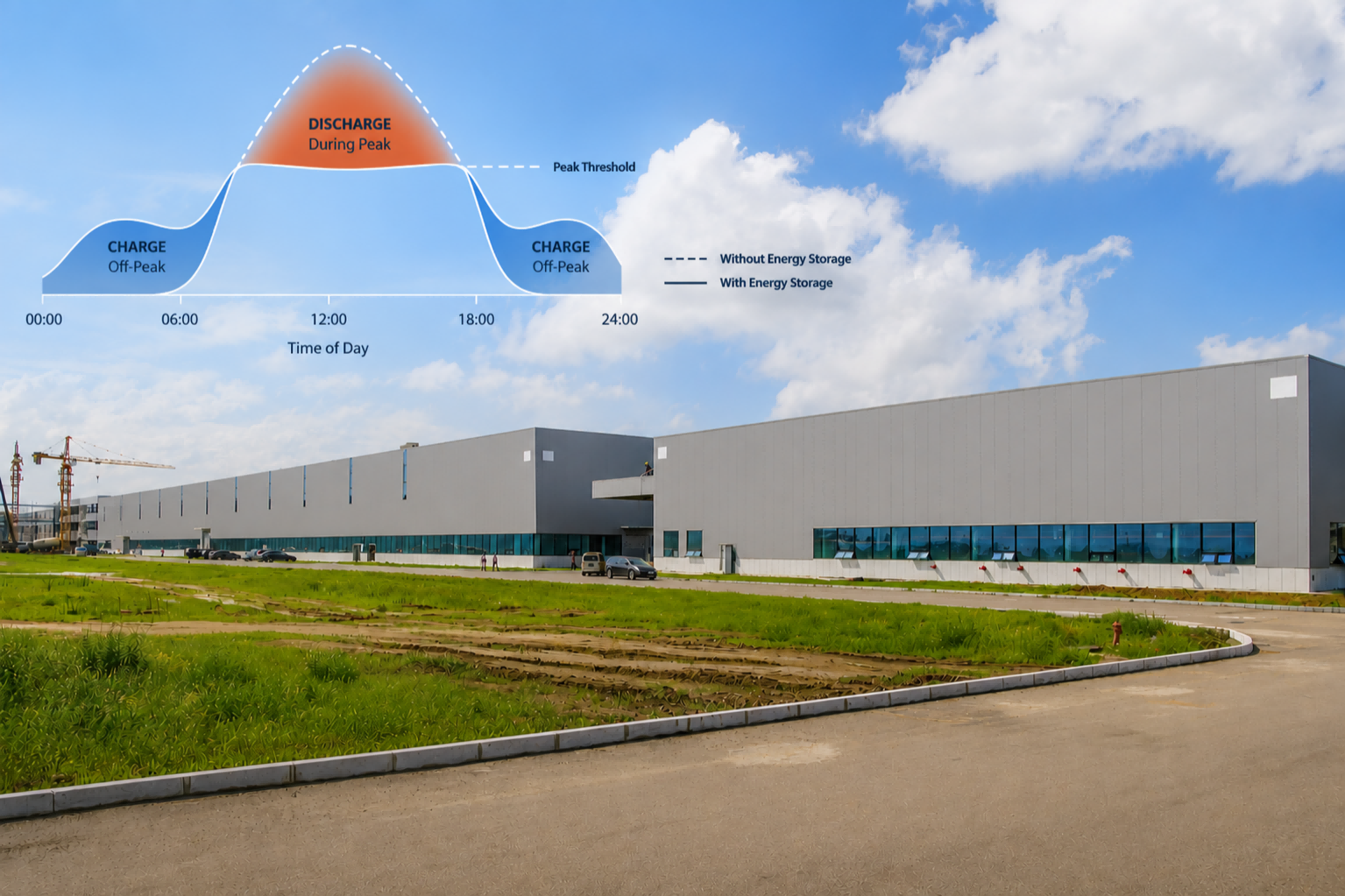

Where You Need Them
