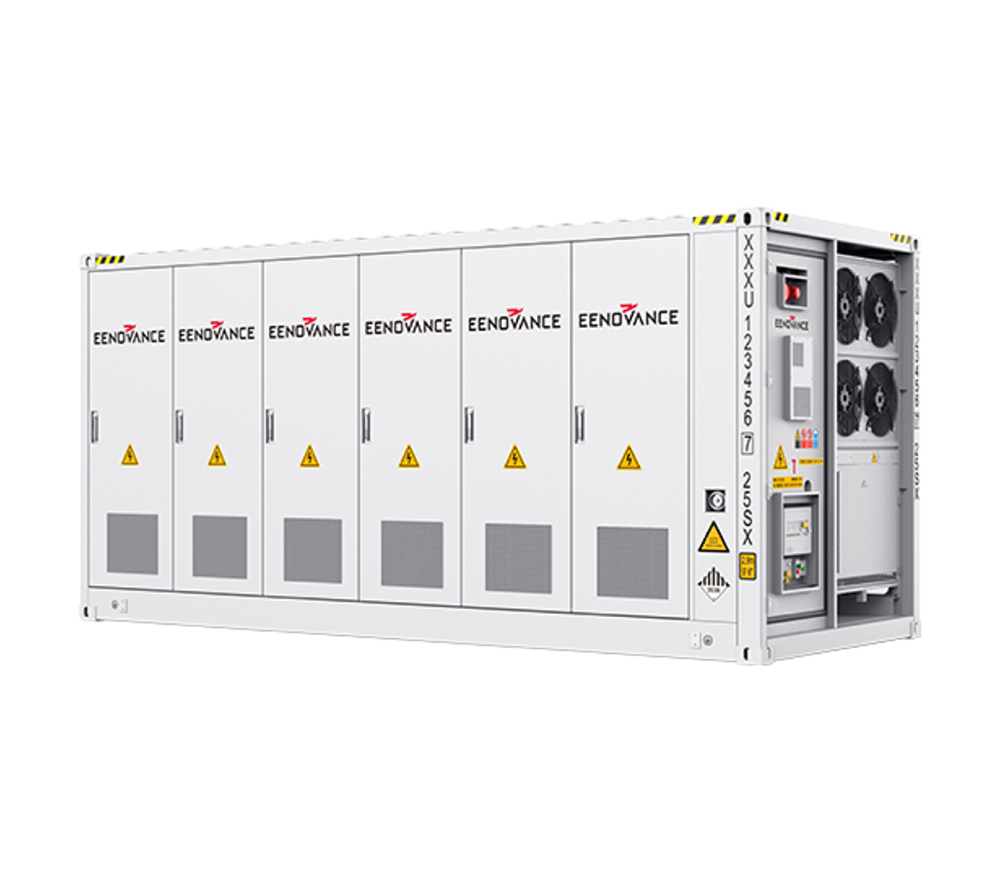

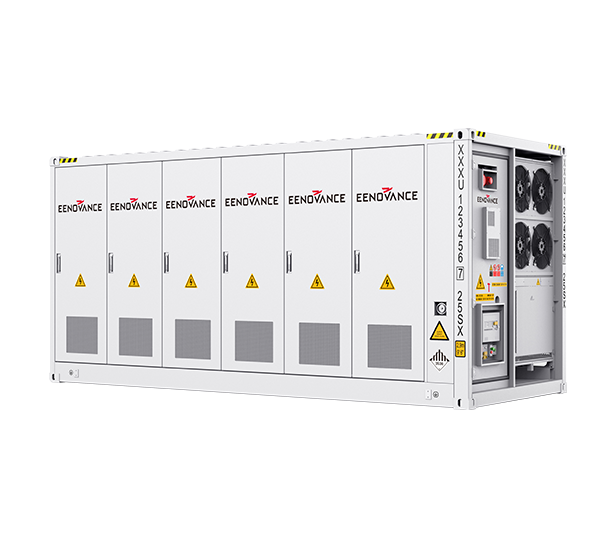

G-Power 1500-3134-L
Liquid Cooling | 1.5 MW / 3.134 MWh
The G-Power 1500-3134-L is a fully integrated 3.134 MWh liquid-cooled energy storage system engineered for commercial and industrial energy storage, microgrids, and renewable energy applications.
Combining advanced liquid-cooling technology, intelligent cluster-level management, comprehensive safety architecture, and cloud-based energy management, the system delivers exceptional energy density, operational reliability, and long-term profitability. Designed for rapid deployment and stable operation in demanding environments, G-Power 1500-3134-L helps maximize renewable energy utilization, reduce operating costs, and strengthen energy resilience.
.png)
Features
Delivered as a factory-integrated AC+DC solution, the system significantly reduces on-site installation and commissioning work, accelerating project delivery and shortening time-to-revenue.
Designed to operate reliably from -20°C to 50°C, with no power derating under high-temperature conditions, ensuring stable performance across deserts, industrial zones, coastal regions, and other challenging environments.
.png)
Independent cluster management enables flexible capacity utilization, precise energy balancing, and fault isolation, maximizing system availability while minimizing operational disruptions.
.png)
From cell-level monitoring to container-level fire protection, the system integrates gas detection, thermal monitoring, aerosol suppression, explosion venting, and intelligent BMS control to deliver comprehensive safety throughout the entire lifecycle.
High-efficiency liquid cooling, long-life LFP batteries, intelligent operation strategies, and reduced maintenance requirements contribute to lower total cost of ownership and stronger long-term project returns.
Real-time monitoring, remote diagnostics, OTA upgrades, automated reporting, and intelligent alarm management enable more efficient operation and simplified asset management.
Products Parameter
.png)
- Cell technology LFP-3.2 V / 314 Ah
- Rated capacity 3.134 MWh
- Rated voltage 832 Vdc
- Voltage range 728 Vdc ~ 936 Vdc
- Charge / discharge rate 0.5P
- Cycle life 8000 cycles (25±2°C, 0.5P/0.5P, 70% SOH)
- Ingress protection IP55
- Corrosion Resistance C4M
- Dimension (W×D×H) 6058×2438×2896 mm(238.5×96×114 inch)
- Weight 33 T (99208.0 Ibs)
- FSS Aerosol: module-level + containerized-level, water firefighting, combustible gas detection and exhaust, explosion venting design
- Compliance UN3536,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/-4,IEC60730,UN38.3,Rohs
