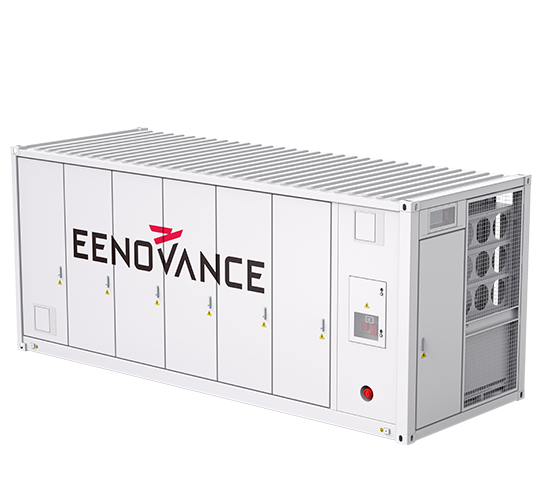

G-Power 5016-L
Liquid Cooling | 5.016 MWh
G-Power 5016-L is a latest containerized battery sytem for energy storage applications of the Grid. It features a 20-foot standard container, with deep integration, safety, reliability, intelligence and high efficiency.
Certification:
UN38.3/UN3536/IEC62619/EC6100-6-2/EC62477-1/CQC etc.
Features
Comprehensive Protection
Integrates multi-level warnings (gas/water fire protection, exhaust, explosion venting) for your asset safety.
Flexible and Expandable
Modular design, easy to capacity expansion, supports multiple units in parallel.
Temperature Stability
Efficient thermal management (temp. diff. ≤3°C, rise <7°C) extends lifespan and ensures stability.
Easy Maintenance
Front-access and modular design make station deployment simpler, reducing footprint and easing maintenance.
Products Parameter
G-Power 5016-L
- Cell technology LFP-3.2 V / 314 Ah
- Rated capacity 5.016 MWh
- Rated voltage 1331.2 V
- Battery system voltage range 1040V~1497.6V
- Battery system charge / discharge rate 0.5P
- Cycle life 8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
- Ingress protection IP55
- Dimension (W×D×H) 6058x2438x2896 mm (238.5x96x114 inch)
- Weight 40T-45T (88184.9 lbs-99208.0 lbs)
- Firefighting Aerosol: module-level + containerized-level, water firefighting, combustible gas detection and exhaust, explosion venting design
