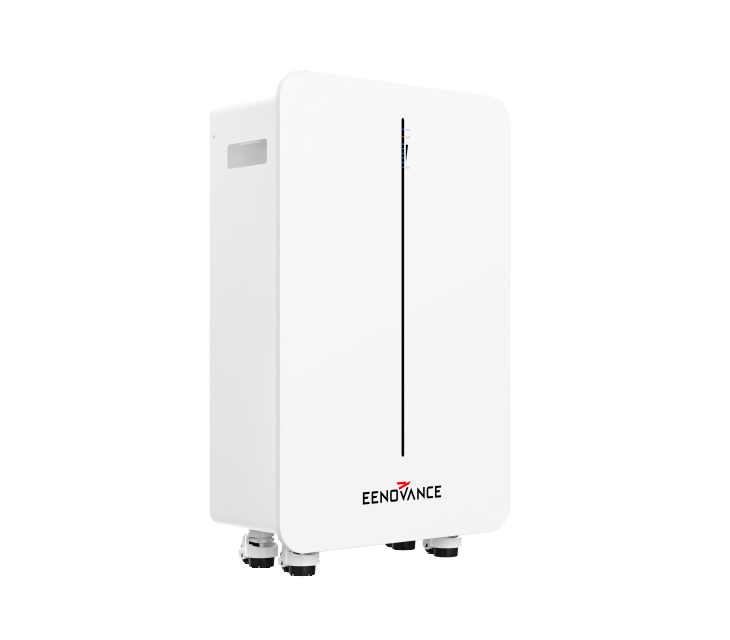

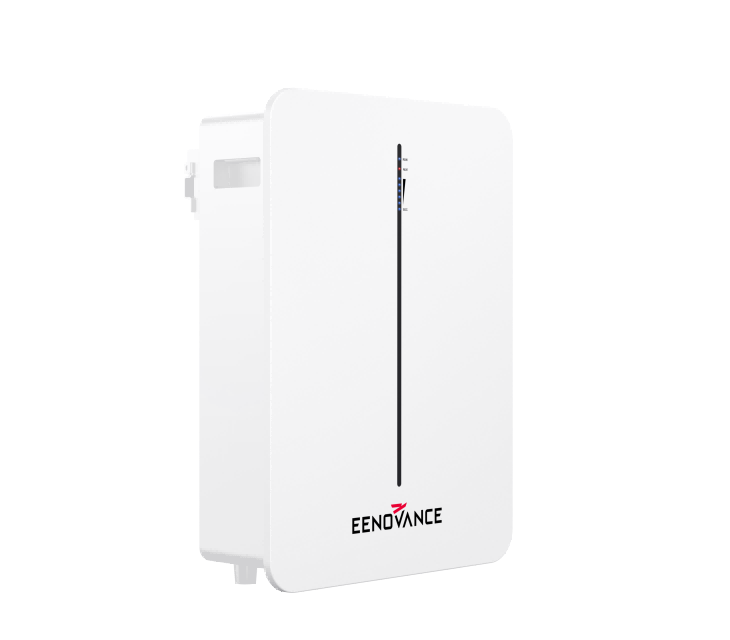

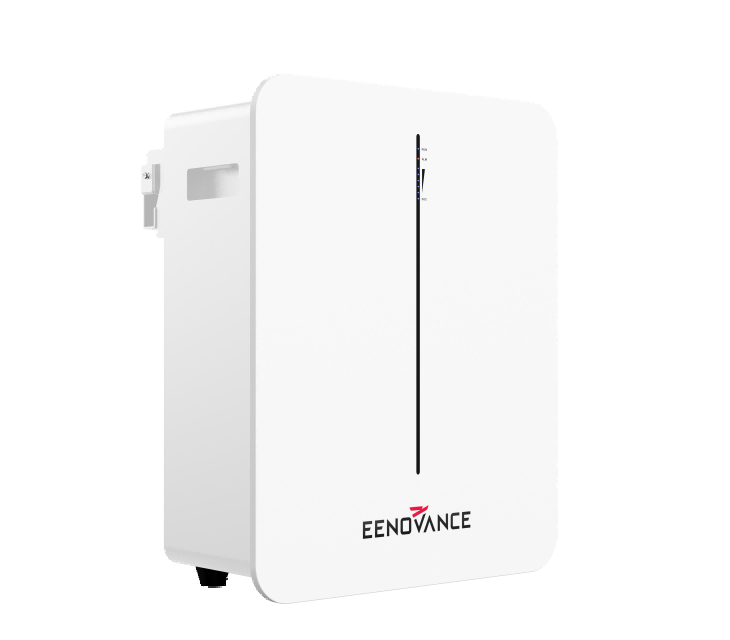

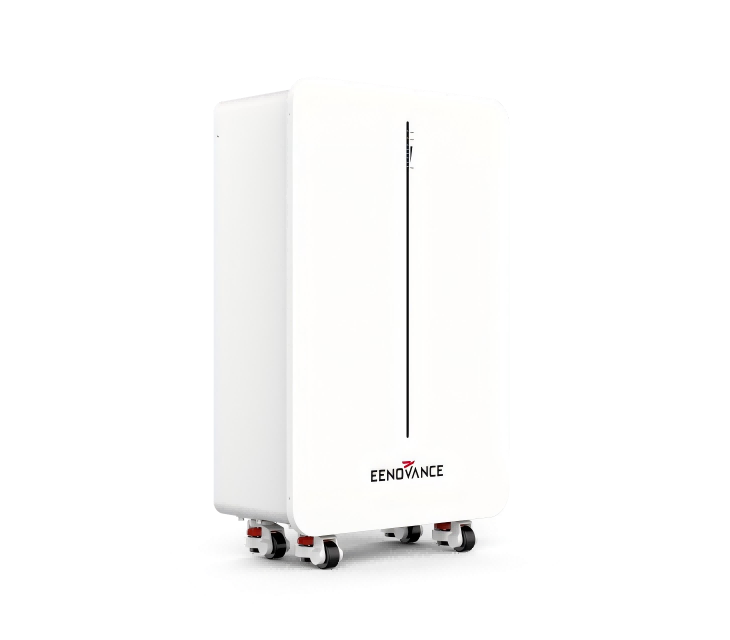

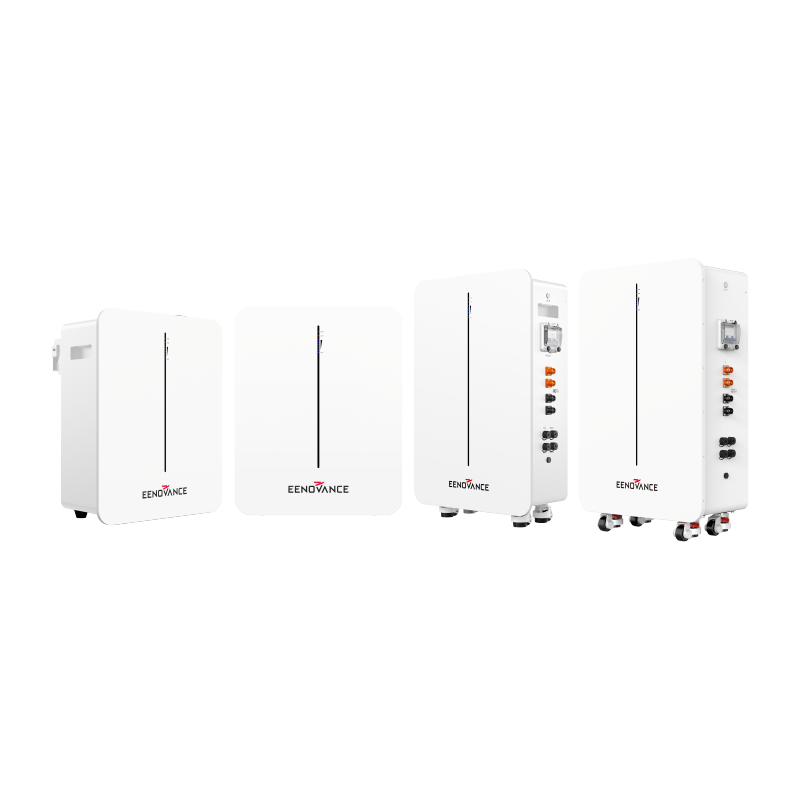

MANA-P Series

5.12 kWh / 10.49 kWh / 16.07 kWh / 20.07 kWh

MANA-P Series model is a low-voltage residential energy storage system suitable for both indoor and outdoor installation. With an IP65-rated enclosure, it delivers reliable operation in dust and water exposed environments. Each unit offers 5.12–20.07 kWh of usable energy and supports up to 15 batteries in parallel, enabling system expansion to 301.05 kWh.

Compliance:

UN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A etc.

Features

IP65 Protection

Stable operation in dust, rain, and outdoor conditions.

Scalable Capacity

Up to 241.05 kWh as household needs grow.

Easy Expansion

Expand to 15 units without complex setup.

Smart Control

Remote monitoring and updates via app.

Certified Safety

UL and IEC certified for daily home use.

Products Parameter

MANA-P Series

Cell technology LFP ( LiFePO4)
Battery usable energy 5.12 kWh / 10.49 kWh / 16.07 kWh / 20.07 kWh
Nominal capacity 100 Ah/ 205 Ah/ 314 Ah / 392 Ah
Nominal voltage 51.2 V
Operating voltage 44.8 ~ 56.16 V
Max. charge and discharge current 100A/ 200 A/ 200A/ 200A
Dimension (W×D×H) 470×160×635 mm/ 530×245×660mm/ 530×245×847mm/ 535×270 ×880 mm
Weight 48.8 kg/ 88 kg/ 120 kg/ 148 kg
Ingress protection IP65
Warranty period 5 years / 10 years（Optional）
Compliance UN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A (More available upon request)
