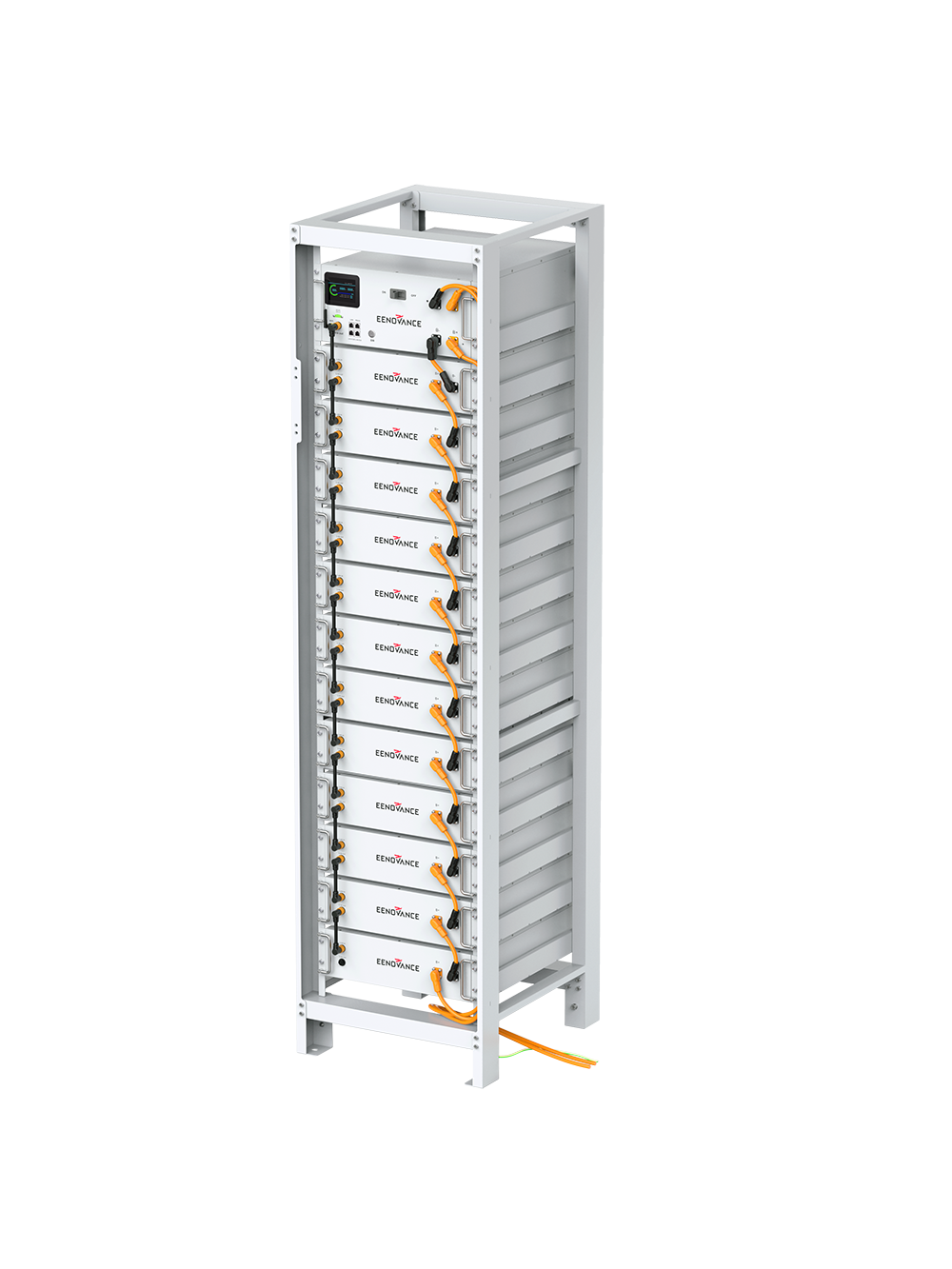

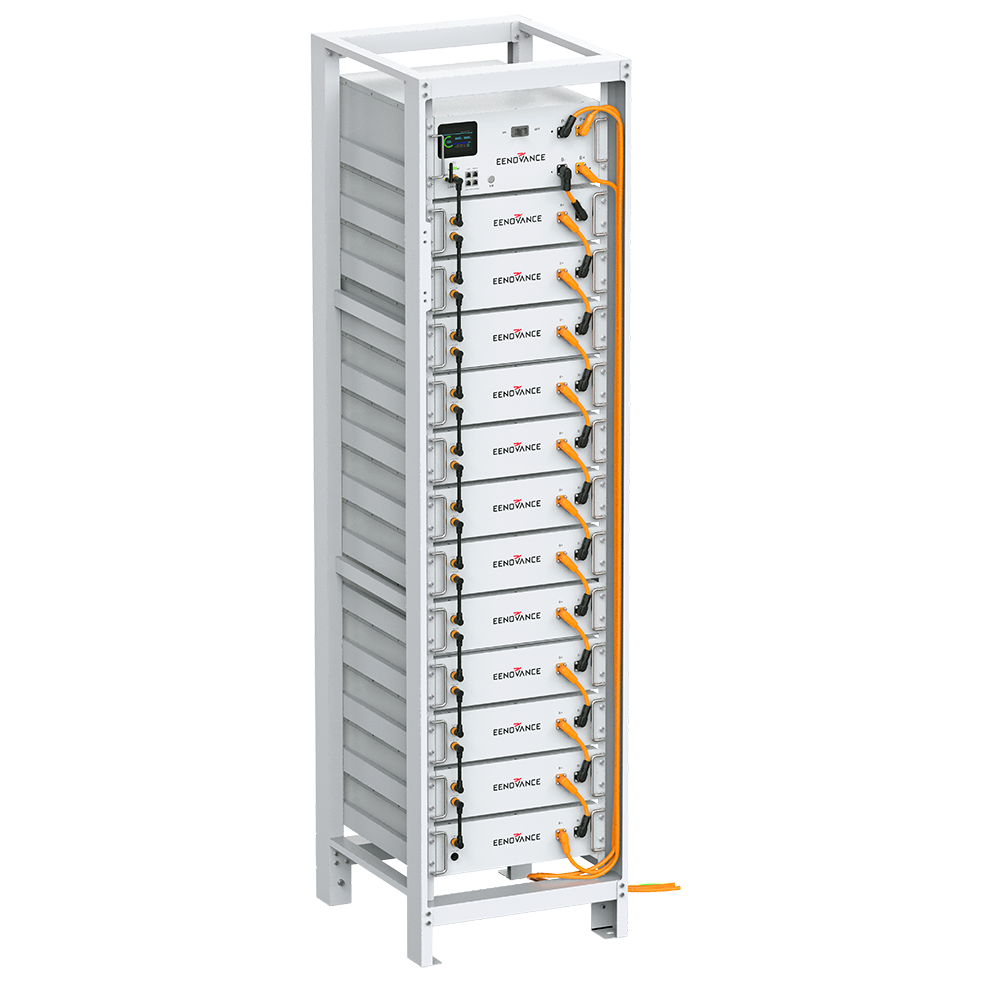

RT 5.12-HX

20.48-61.44kWh | High Voltage

RT 5.12-HX High Voltage Battery System, a flagship product from EENOVANCE, is designed for small-scale commercial and industrial energy storage systems. With a modular capacity of 5.12 kWh, it supports up to 12 battery packs per cluster and a maximum of 4 clusters in parallel. Widely installed globally, it is highly regarded for its reliability and efficiency.

Certification:

UN38.3/IEC62619/IEC62040-1/IEC61000-6-2/IEC61000-6-4/IEC62477-1, etc.

Features

Safe and Reliable

LiFePO4 battery cell offers up to 6000 cycles for longer-lasting performance.

Flexible and Expandable

Max. 12 modules per stack, connecting up to 4 stacks in parallel for versatile energy solutions.

Easy Installation

Quick-connect plug for easy wiring.

Quick Commissioning

One button ON/OFF, automatic lD assignment.

Smart Control

Control your energy effortlessly via App or Web, keeping you connected anytime, anywhere.

Products Parameter

RT 5.12-HX

Cell technology: LFP (LiFePO4)
Number of modules: 4~12
Battery usable energy: 20.48 ~ 61.44 kWh
Nominal voltage: 204.8 - 614.4 V
Max. charge and discharge current: 100 A
Display: SOC status indicator, LED/LCD display (Optional)
Cycle life: 6000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
Scalability: Max. 12 modules per stack, 4 stacks in parallel
Compliance: UN38.3 / IEC62619 / IEC62040-1 / IEC61000-6-2 / IEC61000-6-4 / IEC62477-1
