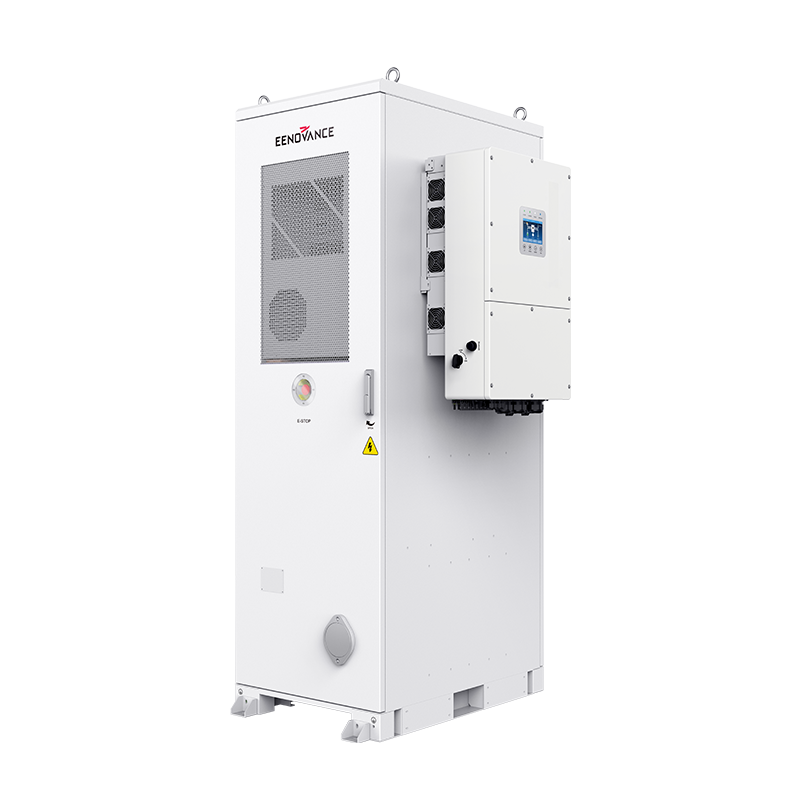

E-MATE 50-61-A

Air Cooling | 50 kW / 61 kWh

E-MATE 50-61-A commercial air-cooling energy storage system offers intelligent remote monitoring and robust safety features. Its integrated design simplifies installation, while flexible expansion options and multi-scenario support make it a reliable and scalable solution for commercial energy storage needs.

Certification：
UN38.3/UN3480/IEC62619/IEC6100-6-2/IEC62477-1/CQC etc.

Features

Safe and Reliable

Multi-level early warning and fire suppression design.

High Integration

AC/DC integration simplifies installation and reduces costs.

Profit Maximization

Adapts to on-grid, off-grid, and hybrid modes, with 4 MPPTs PV DC bus connections for improved efficiency and profitability.

Seamless Switching

Supports smooth transitions between on-grid and off-grid, ensuring a highly reliable power supply.

Smart O&M

Efficient management for remote monitoring, troubleshooting, and data analysis.

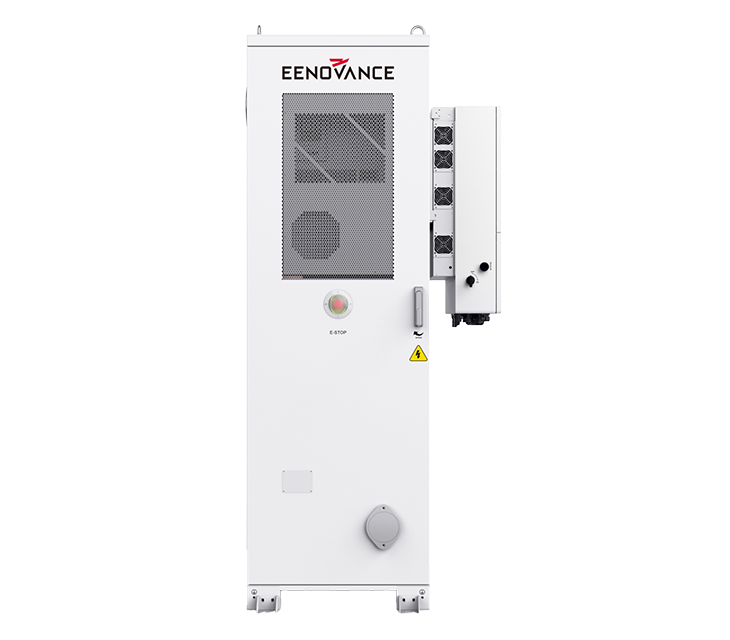

Products Parameter

E-MATE 50-61-A

Cell technology LFP-3.2 V / 100 Ah
Battery pack 5.12 kWh, 51.2 V
Number of packs 61.44 kWh
Rated voltage 614.4 V
Rated current 80 A
Voltage range 480 V ~ 700.8 V
Charge / discharge rate 0.8P
Cycle life 6000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
Rated output power 50 kW
Rated grid voltage 3L / N / PE220 / 380, 230 / 400Vac
Maximum output current 76A
PV side voltage range 150 V - 850 V (full power above 500 V)
MPPT quantity 4
Firefighting Aerosol: module-level (optional) + stack-level, water firefighting, combustible gas detection and exhaust
Compliance UN38.3 / UN3480 / IEC62619 / IEC61000 / IEC62477-1 / CQC
